SSC-760252485A3 | High Capacity Radio Enclosure - HCRE

Middle of Pole Concealment Enclosure that is configurable for small cell equipment. Ideal for Multi Tenant

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

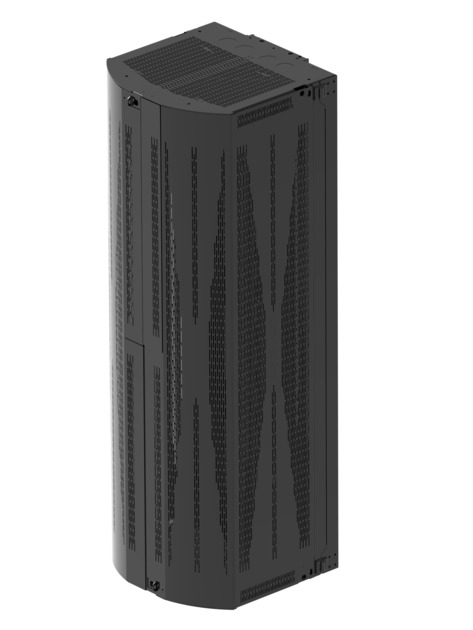

HCRE SSC-760252485A3X Black

Features and Benefits

Includes mounting hardware to be attached to wood poles via through bolt or metal poles up 10.75" OD.

Up to 2 Optional Fan Kits available.

All Radio Bracket Kits Sold Separately. Refer to Configuration Options or Installation documents for released options:
- 860252485-E001 Ericsson Radio Configurations 1 - 9
- 860252485-E001 Ericsson Radio Configurations 10 - 12
- 860252485-E001 Ericsson Radio Configurations 13 - 15
- 860252485-M001 4490 & 4890 with PowerShift Metro

Please reach out to your ANDREW representative for custom configurations and additional equipment compatibility.

Intended to be used with remote radio heads on standard street lighting and wood pole structures where low-visual impact is desired
Enables attractive concealment and securing of all site equipment on standard street lighting structures
Highly-flexible configuration can house diplexers, AC load center, and/or fiber demarcation

Specifications

Product Classification

Product Type	Mid pole
Product Brand	Metro Cell
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General Specifications

Access	Double door
Color	Light Gray (RAL 7035)
Color Options	Black (RAL 9005) \| Brown (RAL 8014) \| Green (RAL 6005) \| Metallic Silver
Compatible Smart Devices	Environmental Monitoring \| WIFI
Cooling	Passive Cooling
Doors, quantity	2
Front Door Type	Single hinged
Growth Configuration	Unloaded
Mounting	Back to Back \| Direct attach \| Pole \| Rack \| Wall
Mounting Options	Concrete poles \| Fluted poles \| Metal poles \| Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	6302 \| 6308 \| ABB CC1600 \| APAF \| CCI PSU-1200W-48-N \| DELTA 1.0 \| DELTA 2.0 \| DELTA 3.0 \| FPAE \| PS-DPCPWR-1500 \| PS-INV-54DC-220AC \| PSU-AC-08
Radio Compatibility, Ericsson	220x \| 440x \| 4415 \| 4426 \| 4435 \| 4449 \| 4455 \| 4478 \| 4490 \| 4890 \| 8843 \| 8863 \| Diplexer \| Power Distribution
Radio Compatibility, Nokia	AAHA \| AHBCA \| AHBCC \| AHCA \| AHFB \| AHFIA \| AHFIB \| AHFIC \| AHIA \| AHIB \| AHLBA \| AHLBBA \| AWHHF \| AWHQN \| AZRB \| Airscale micro
Radio Compatibility Samsung	RF4402D-D1A \| RF4437D \| RF4439D \| RF4440D \| RF4442D \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A \| RT8808-77A
Radios Included	None

Dimensions

Height	1778.000 mm \| 70 in
Width	609.600 mm \| 24 in
Depth	609.600 mm \| 24 in

Electrical Specifications

Power/Fiber Input

Trade size knockouts at rear side

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume

0.661 m³ | 23.34 ft³
