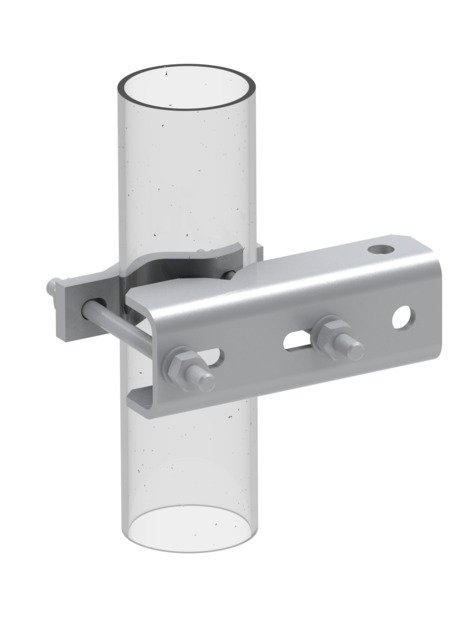

TF-MSS-BK-U
Stiff Arm Support Bracket for 2-3/8 in to 3–1/2 in OD pipe
Specifications
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 76.2 mm | 3 in |
| Length | 76.2 mm | 3 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp | U-bolt |
| Packaging quantity | 1 |
| Weight, net | 2.58 kg | 5.688 lb |
Product Classification
| Product Type | Microwave strut support |
General Specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 76.2 mm | 3 in |
| Length | 76.2 mm | 3 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.325 mm | 2.375 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp | U-bolt |
| Packaging quantity | 1 |
| Weight, net | 2.58 kg | 5.688 lb |
