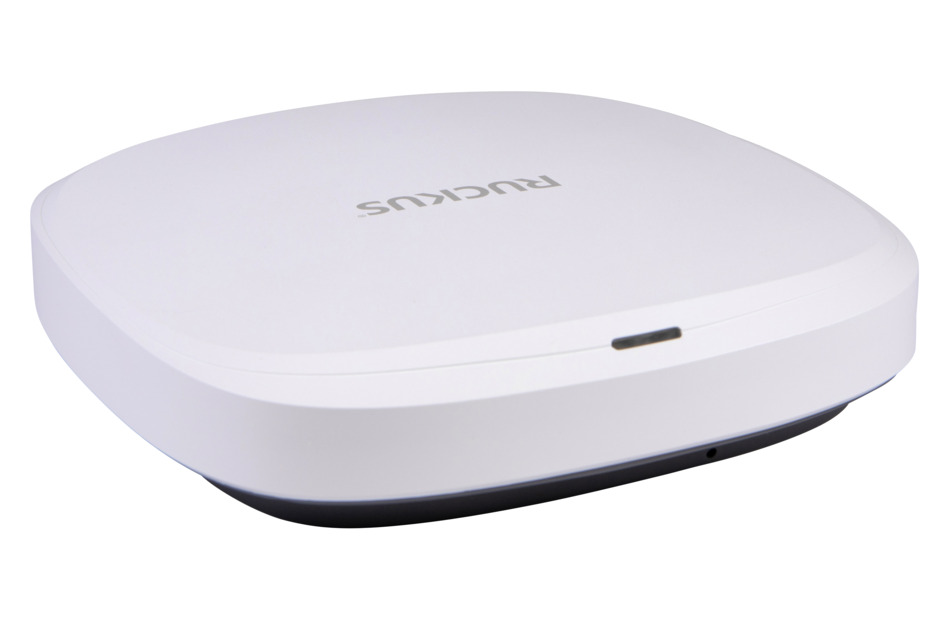

R670 | RUCKUS R670 Indoor Access Point
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
High-Performance Wi-Fi 7 2x2:2 Indoor Access Point with 9.3 Gbps max rate and Embedded IoT
Features and Benefits
The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming like 4K/8K video transmissions, while latency voice and data with stringent quality-of-service requirements.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 4000+ |
| Antenna Gain | Up to 4 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 768 |
| Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ |
| Ethernet Ports | 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE |
| IoT Support | IoT Onboard |
| Number of Radios | Tri-Radio |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 689 Mb/s |
| PHY Rate at 5 GHz, maximum | 5765 Mb/s |
| PHY Rate at 6 GHz, maximum | 5765 Mb/s |
| Combined Max PHY Rate | 9340 Mb/s |
| Radio Chains and Streams | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| Rx Sensitivity at 6 GHz | -96 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality | Office/Retail | Public Venue |
| Venue Sub-Type | Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz | 6 GHz |
| Wi-Fi Generation | Wi-Fi 7 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax/be |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
General Specifications
| Antenna Patterns, per band | 4000+ |
| Antenna Gain | Up to 4 dBi |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 768 |
| Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ |
| Ethernet Ports | 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE |
| IoT Support | IoT Onboard |
| Number of Radios | Tri-Radio |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 689 Mb/s |
| PHY Rate at 5 GHz, maximum | 5765 Mb/s |
| PHY Rate at 6 GHz, maximum | 5765 Mb/s |
| Combined Max PHY Rate | 9340 Mb/s |
| Radio Chains and Streams | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -100 dBm |
| Rx Sensitivity at 6 GHz | -96 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality | Office/Retail | Public Venue |
| Venue Sub-Type | Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz | 6 GHz |
| Wi-Fi Generation | Wi-Fi 7 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax/be |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
