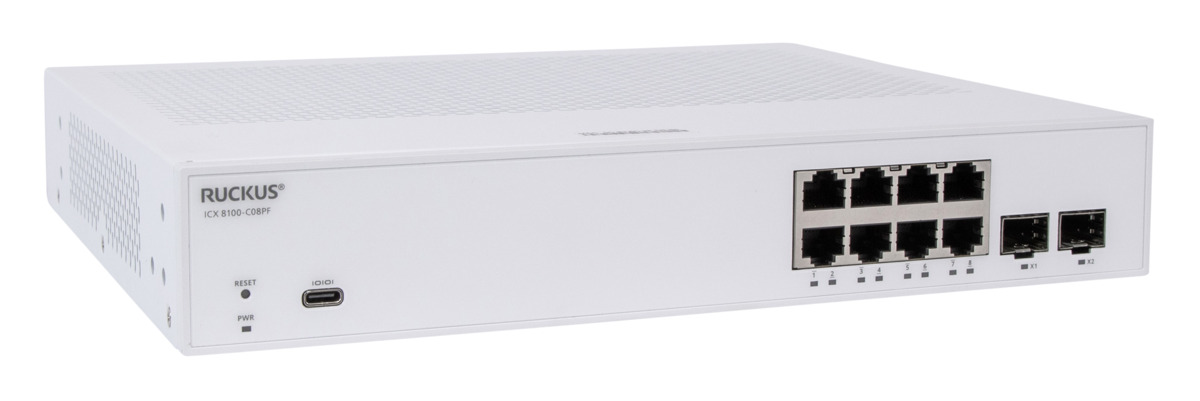

ICX8100-C08PF | RUCKUS ICX 8100-C08PF

Base Product: ICX8100

Entry-Level Access Compact 8 Ports 1G PoE Switch

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Ethernet switch
Product Brand	RUCKUS®

Switching Capacity, maximum	68 Gb/s
1 GbE RJ45 Ports, quantity, maximum	8
1 GbE SFP Ports, quantity, maximum	2
10 GbE SFP+ Ports, quantity, maximum	2
PoE Power Budget, maximum	124 W
PoE/PoE+	Yes
Stacking	No
sFlow	Yes
Layer 3 (STATIC, RIP, OSPF)	No
OpenFlow with Hybrid Port Mode	No
Campus Fabric Technology	No
Redundant Power Option	No
Hot Swap Internal Power Supplies & Fans	No
802.3bt2 (90 W PoE Power per Port)	No
VRF	No
EEE (Energy Efficient Ethernet)	Yes
IPsec VPN, with service module	No
MACsec	No
BGP	No
Reversible Airflow Option	No
VxLAN	No
Multi Chassis Trunking (MCT)	No

Agency	Classification
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Ethernet switch
Product Brand	RUCKUS®

Switching Capacity, maximum	68 Gb/s
1 GbE RJ45 Ports, quantity, maximum	8
1 GbE SFP Ports, quantity, maximum	2
10 GbE SFP+ Ports, quantity, maximum	2
PoE Power Budget, maximum	124 W
PoE/PoE+	Yes
Stacking	No
sFlow	Yes
Layer 3 (STATIC, RIP, OSPF)	No
OpenFlow with Hybrid Port Mode	No
Campus Fabric Technology	No
Redundant Power Option	No
Hot Swap Internal Power Supplies & Fans	No
802.3bt2 (90 W PoE Power per Port)	No
VRF	No
EEE (Energy Efficient Ethernet)	Yes
IPsec VPN, with service module	No
MACsec	No
BGP	No
Reversible Airflow Option	No
VxLAN	No
Multi Chassis Trunking (MCT)	No
