760238015 | SCIL-A-S48

Base Product: SCIL

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

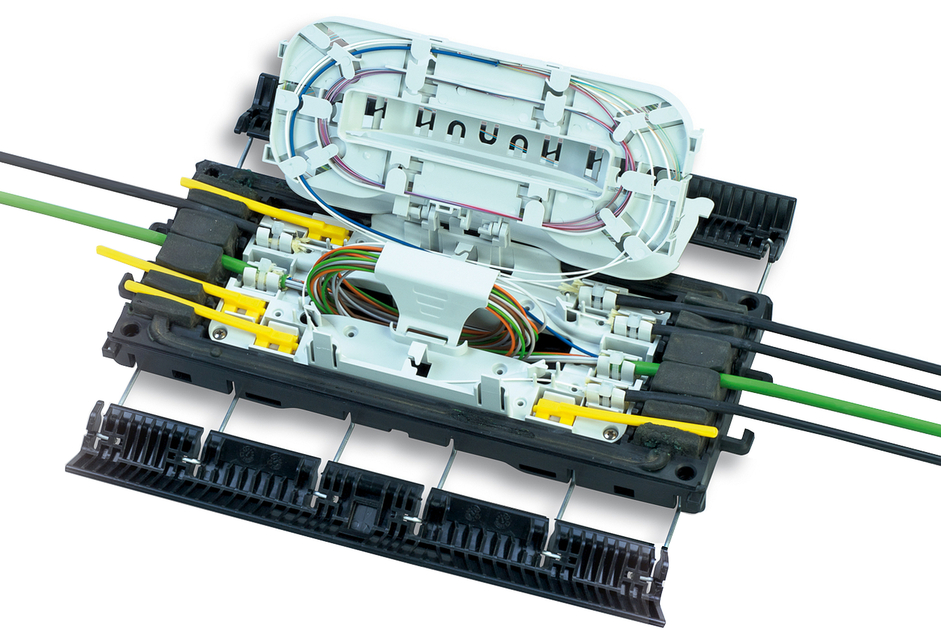

SCIL-A Fiber splice closure, in-line, with 4 gel cable sealing kits, 1 pre-installed 48-splice tray and SMOUV protectors, no ground feedtrough lug , no air valve

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Leverages proven FOSC™ fiber management system, with multiple splice tray options
Removeable cover allows unrestricted access to cable termination and splice area for easier installation
Cable termination and retention system fits any cable type from traditional loose tube buffered to small micro-sheath cables

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	In-line, rectangular fiber closure
Product Brand	SCIL™
Product Series	SCIL-A

General Specifications

Cable Entry Drop Port Style	Round
Cable Entry Main Port Style	Round
Cable Ports Quantity, total	2 round ports + 8 multi-out ports
Cable Sealing Type	Compressed gel
Closure Sealing Type	Side latch
Closure Style	In-line
Color	Black
Flash Test Valve	None
Ground Feed-through	None
Mounting	Facade \| Wall
Network Area Type	Drop
Splice Tray Included, quantity	1
Splice Tray Type Included	48-way, heat shrink
Splicing Capacity, Single Fusion, maximum	48
Splicing Capacity, Single Splice, 12 fibers, maximum	48
Splicing Type, Supported	Single fusion

Dimensions

Height	70 mm \| 2.756 in
Width	100 mm \| 3.937 in
Length	250 mm \| 9.843 in
Main Cable Diameter, maximum	11 mm \| 0.433 in

Material Specifications

Material Type

Rugged polymer

Environmental Specifications

Environmental Space	Above ground \| Below ground
Qualification Standards	IEC 60529, IP68 + 2 m waterhead

Packaging and Weights

Included	SMOUV splice protectors (48)
Packaging quantity	1
Packaging Type	Box \| Carton
Weight, net	1 kg \| 2.205 lb

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
