760245402 | G2-SP-12LCG-RPT

Base Product: G2-SPLICE-CASSETTES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

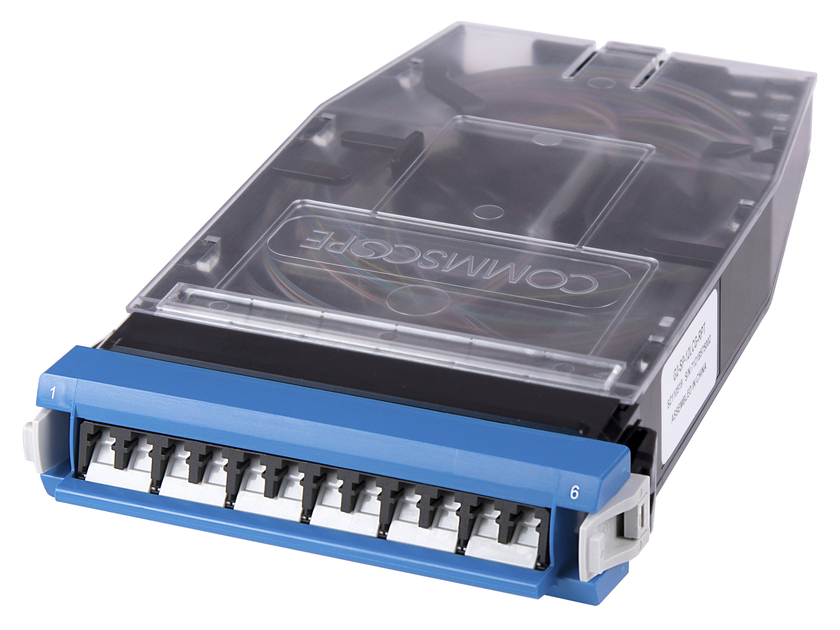

G2 Splice Cassette, 12LC/UPC with internal shutters, OS2, with ribbon pigtails

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber cassette with ribbon pigtail
Product Series G2

General Specifications

Color, front Blue
Interface, front LC/UPC
Interface, rear Ribbon pigtail
Polarity Pairs, straight
Shuttered Yes
Total Fibers, quantity 12

Dimensions

Height 26.416 mm | 1.04 in
Width 96.52 mm | 3.8 in
Depth 165.354 mm | 6.51 in

Material Specifications

Alignment Sleeve Material Zirconia

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, maximum 0.25 dB
Return Loss, minimum 50 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included SMOUV holder | SMOUV splice protection
Packaging quantity 1
Weight, net 0.113 kg | 0.2502 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
