MTC3734WGB

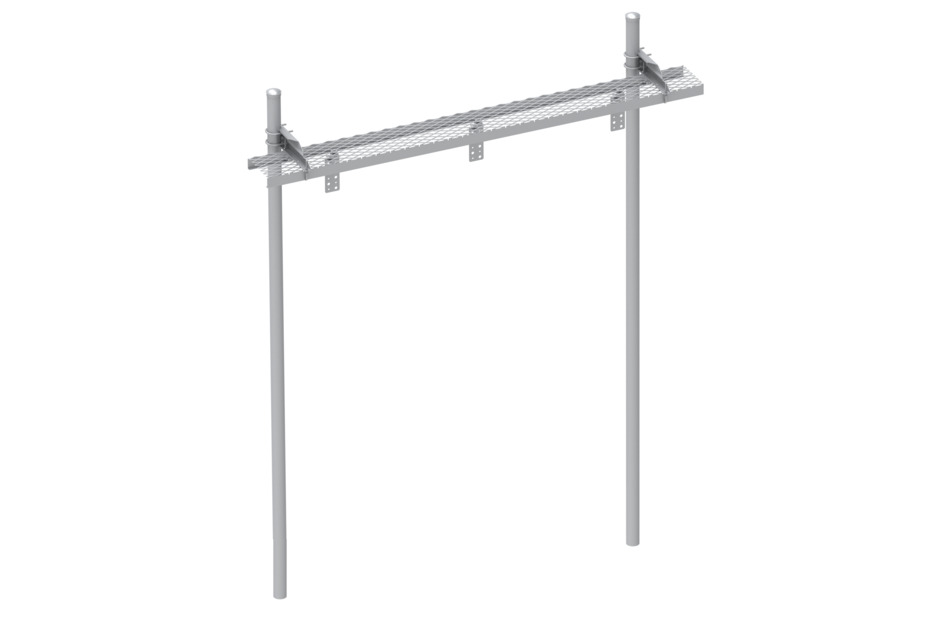

Custom Safety Grated Waveguide Bridge Kit, 12 in x 10 ft, with two 13 ft 4 in direct burial posts and 6-cable Z-bracket
Specifications
Product Classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Application | Direct burial |
| Cable Runs, quantity | 12 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 304.8 mm | 12 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4053.84 mm | 159.6 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Caps | Channel | Hardware | Posts | Support brackets |
| Packaging quantity | 1 |
| Weight, net | 99.22 kg | 218.742 lb |
Product Classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
General Specifications
| Application | Direct burial |
| Cable Runs, quantity | 12 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 304.8 mm | 12 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4053.84 mm | 159.6 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Caps | Channel | Hardware | Posts | Support brackets |
| Packaging quantity | 1 |
| Weight, net | 99.22 kg | 218.742 lb |
Documentation & Downloads
Assembly Drawing
Product Specification
Assembly Drawing
Product Compliance Documentation
Product Specification
