NN-45B-HG-R1B
4-port Next Generation PerforMax™ sector antenna, 4x 698–896, 45° HPBW, 1x RET
Features and Benefits
- Designed to reduce SUB 1 alarm triggers with pattern consistency between low band and mid band
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Best in class PIM immunity
- Interleaved dipole technology results into an attractive, low wind load mechanical package
- Antenna optimized for higher gain with superior radiation efficiency
- Powered by Andrew’s SEED® technology (Sustainable Energy Efficient Design)
- Internal SBTs allow remote RET control from the radio over the RF jumper cable
Specifications
General Specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, antenna only | 49.5 kg | 109.129 lb |
Array Layout
| Click on image to enlarge. |

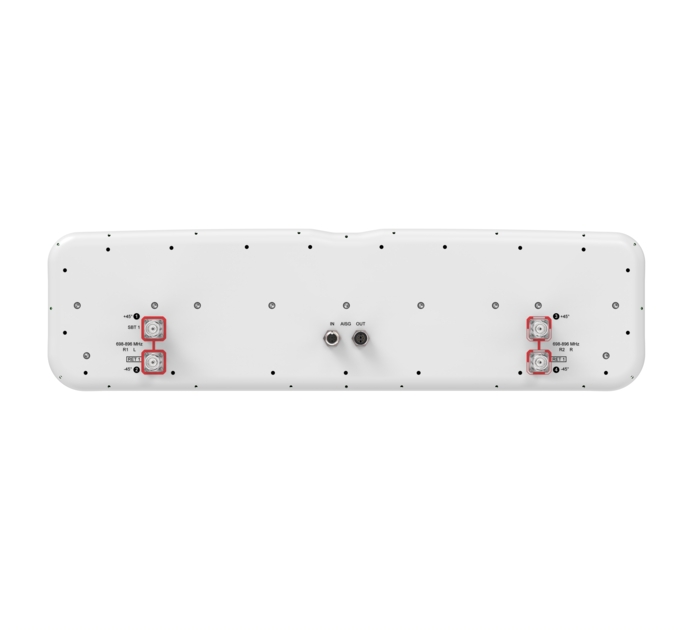

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical Specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 698–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain, dBi | 16.5 | 17.1 |
| Beamwidth, Horizontal, degrees | 48 | 44 |
| Beamwidth, Vertical, degrees | 11.4 | 9.8 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 15 |
| Front-to-Back Ratio at 180°, dB | 25 | 30 |
| CPR at Boresight, dB | 17 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 191.0 N @ 150 km/h (42.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 910 mm | 35.827 in |
| Depth, packed | 368 mm | 14.488 in |
| Length, packed | 2346 mm | 92.362 in |
| Weight, gross | 74.5 kg | 164.244 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, antenna only | 49.5 kg | 109.129 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical Specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 698–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain, dBi | 16.5 | 17.1 |
| Beamwidth, Horizontal, degrees | 48 | 44 |
| Beamwidth, Vertical, degrees | 11.4 | 9.8 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 15 |
| Front-to-Back Ratio at 180°, dB | 25 | 30 |
| CPR at Boresight, dB | 17 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 191.0 N @ 150 km/h (42.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,768.0 N @ 150 km/h (397.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 910 mm | 35.827 in |
| Depth, packed | 368 mm | 14.488 in |
| Length, packed | 2346 mm | 92.362 in |
| Weight, gross | 74.5 kg | 164.244 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| UK-ROHS | Compliant |
