CO155D2

Base Product

Available in:
Asia
Australia/New Zealand
Latin America
North America

CommScope® Cat 5e U/UTP RJ45 Patch Cord, Non-Plenum

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

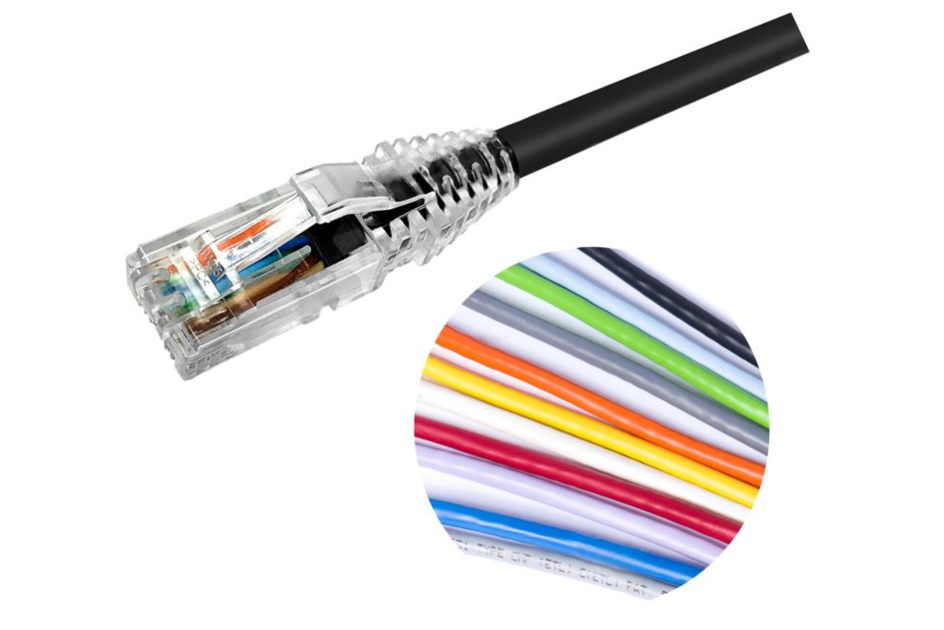

Representative image – please check configurator for available options

Product Variants

Configure and display product variants of CO155D2 by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Jacket Color Cord Length m ft cm in

Part Number	Jacket Color	Cord Length
No configured items found.

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| Latin America \| North America
Portfolio	CommScope®
Product Type	Twisted pair patch cord
Product Series	CHD \| CO
Ordering Note	Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords \| Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices

General Specifications

ANSI/TIA Category	5e
Cable Type	U/UTP (unshielded)
Conductor Type	Stranded
Interface, Connector A	RJ45 plug
Interface Feature, connector A	Standard
Interface, Connector B	RJ45 plug
Interface Feature, connector B	Standard
Jacket Color	Black \| Blue \| Green \| Orange \| Red \| Slate \| White \| Yellow
Pairs, quantity	4
Transmission Standards	IEEE 802.3bt Type 4
Wiring	T568B

Dimensions

Cable Assembly Length Range (m)	1 – 30
Cable Assembly Length Range (ft)	1 – 100
Cable Assembly Length Range (cm)	15 – 999
Cable Assembly Length Range (in)	6 – 999
Diameter Over Jacket	5.36 mm \| 0.211 in
Compatible Conductor Gauge, stranded	24 AWG

Wiring Diagram

Click on image to enlarge.

Electrical Specifications

dc Resistance, maximum	0.3 ohm
Safety Voltage Rating	300 V

Ordering Tree

Click on image to enlarge.

Material Specifications

Contact Plating Material	Gold in remating area \| Nickel underplating
Material Type	Phosphor Bronze \| Polycarbonate

Mechanical Specifications

Plug Insertion Life, minimum	750 times
Plug Retention Force, minimum	133 N \| 29.9 lbf

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space	Non-plenum
Flammability Rating	CM
Safety Standard	ETL \| cETL

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
