760152819 | HGS620-100

Base Product: HGS620

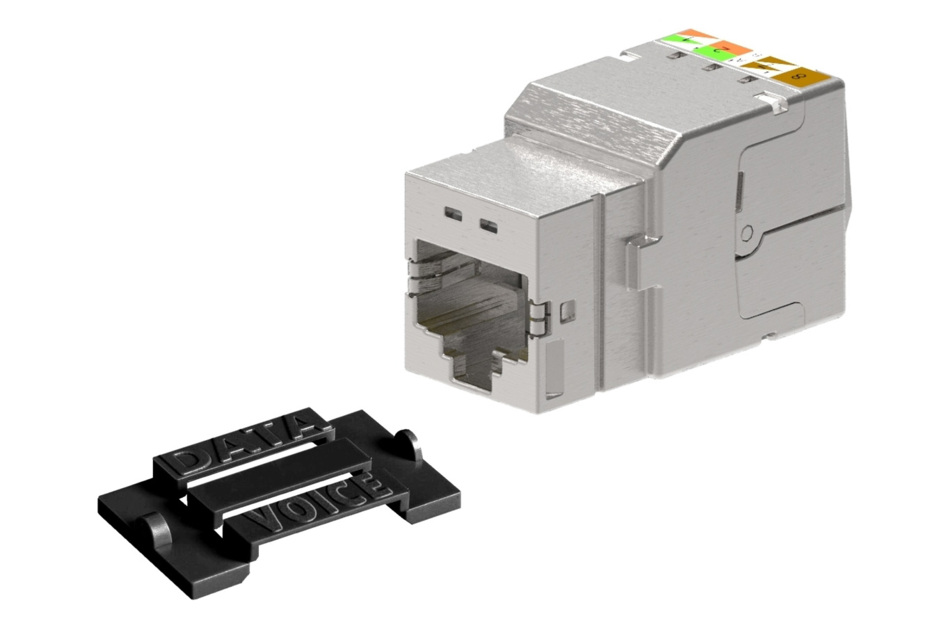

GigaSPEED X10D® HGS-Series Modular Jack, RJ45, Cat6A, Shielded, Silver (100 ea/pkg)

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	SYSTIMAX®
Product Type	Modular jack
Product Brand	GigaSPEED X10D®
Product Series	HGS620

ANSI/TIA Category	6A
Cable Type	Shielded
Color	Silver
Conductor Type	Solid \| Stranded
Integrated Dust Cover Type	None
Mounting Note	Color matches with M-series Black Faceplates and Surface Mount Boxes
Outlet Type	Keystone \| M Series
Termination Type	IDC
Transmission Standards	ANSI/TIA-568.2-D \| ISO/IEC 11801 Class EA
Wiring	T568A \| T568B

Height	19.56 mm \| 0.77 in
Width	17.02 mm \| 0.67 in
Depth	33.53 mm \| 1.32 in
Compatible Conductor Gauge, solid	22 AWG \| 24 AWG
Compatible Conductor Gauge, stranded	22 AWG \| 24 AWG

Contact Resistance Variation, maximum	20 mOhm
Contact Resistance, maximum	100 mOhm
Current Rating at Temperature	1.5 A @ 20 °C \| 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface	1,500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Insulation Resistance, minimum	500 MOhm
Remote Powering	Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Contact Plating Material	Precious metals
Material Type	Copper alloy \| High-impact, flame retardant, thermoplastic \| Tin \| Zinc
Termination Contact Plating	Nickel

Plug Insertion Life, minimum	750 times
Plug Insertion Life, test plug	IEC 60603-7 compliant plug
Plug Retention Force, minimum	133 N \| 29.9 lbf

Packaging quantity

100

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
