360-MOD-M-PANELS

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

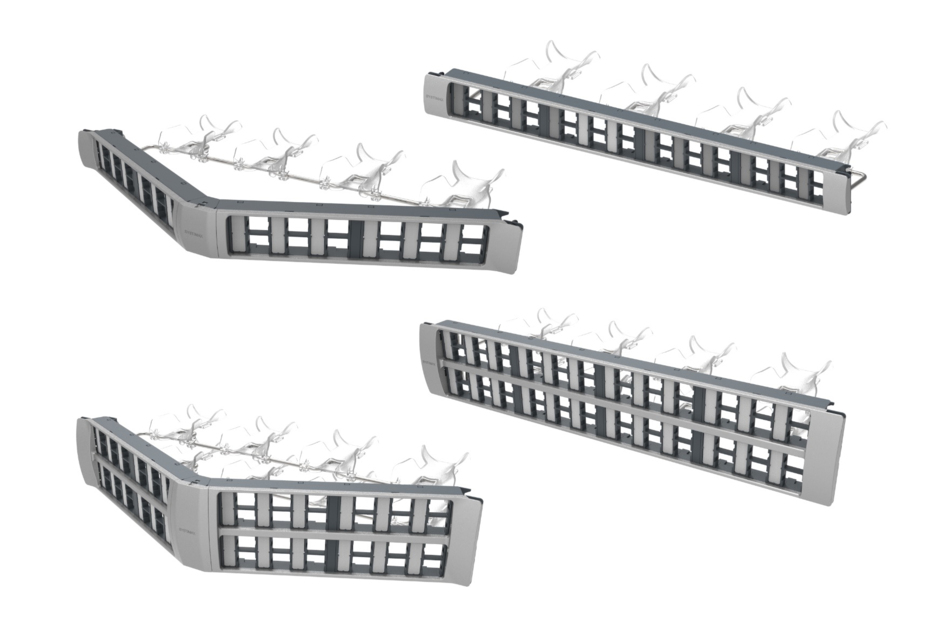

SYSTIMAX 360™ Evolve Module Panels

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of 360-MOD-M-PANELS by selecting options

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	SYSTIMAX®
Product Type	RJ45 patch panel
Product Brand	SYSTIMAX 360™

General Specifications

Color	Cool gray
Rack Type	EIA 19 in
Wiring	T568A \| T568B

Dimensions

Compatible Diameter Over Dielectric, maximum	1.168 mm \| 0.046 in
Compatible Diameter Over Dielectric, minimum	0.762 mm \| 0.030 in

Electrical Specifications

Current Rating at Temperature	1.5 A @ 20 °C \| 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface	1,500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Insulation Resistance, minimum	500 mOhm

Material Specifications

Material Type

High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity	Up to 95%, non-condensing
Flammability Rating	UL 94 V-0
Safety Standard	UL \| cUL
